Polyimide (PI)¶
Guide by: ME Item Storage Cell
PI is the most advanced plastic used to insulate cables, used in conjunction with PVC and PPS. You will need it from
In case you were wondering, it is pronounced close to pol-yimide, not poly-mide, or
poly-imide.
How to make PI¶
LCR + Chem Plant¶
flowchart TD
%%{init: { 'theme': 'neutral', 'themeVariables': { 'edgeLabelBackground': 'transparent', 'secondaryColor': 'transparent', 'tertiaryColor': 'transparent', 'labelBkgBackground' : 'transparent' }}}%%
classDef invisible fill:none,stroke:none,color:none,stroke-width:0px
subgraph NMethyl2Pyrrolidone [" "]
direction TB
AmmoniaML@{ shape: lean-r, label: "36b Ammonia" }
MLProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/Polyimide_img/large_chemical_reactor_methylamine.png", label: "LCR", pos: "t", w: 200, h: 200, constraint: "on" }
MLWater@{ shape: lean-l, label: "36b Water" }
Benzene14B@{ shape: lean-r, label: "18b Benzene" }
Oxygen14B@{ shape: lean-r, label: "72b Oxygen" }
Hydrogen14B@{ shape: lean-r, label: "216b Hydrogen" }
14BProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/Polyimide_img/chemical_skip_14_butanediol_skip.png", label: "Chem Plant <br /> (Palladium on Carbon Catalyst)", pos: "t", w: 200, h: 200, constraint: "on" }
OxygenYB@{ shape: lean-r, label: "72b Oxygen" }
YBProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/Polyimide_img/large_chemical_reactor_y_butyrolactone.png", label: "LCR", pos: "t", w: 200, h: 200, constraint: "on" }
YBWater@{ shape: lean-l, label: "72b Water" }
NM2PProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/Polyimide_img/large_chemical_reactor_nmp.png", label: "LCR", pos: "t", w: 200, h: 200, constraint: "on" }
NM2PWater@{ shape: lean-l, label: "36b Water" }
AmmoniaML --> MLProcess
MLProcess --> MLWater
Benzene14B & Oxygen14B & Hydrogen14B --> 14BProcess
14BProcess --36b Methanol--> MLProcess
14BProcess --36b 1,4-Butanediol--> YBProcess
OxygenYB --> YBProcess
YBProcess --> YBWater
MLProcess --36b Methylamine--> NM2PProcess
NM2PProcess --> NM2PWater
YBProcess --36b γ-Butyrolactone--> NM2PProcess
end
class NMethyl2Pyrrolidone invisible
subgraph BenzophenoneTetracarboxylicDianhydride [" "]
direction TB
TolueneBTD@{ shape: lean-r, label: "72b Toluene" }
BenzeneBTD@{ shape: lean-r, label: "99.36b Benzene" }
OxygenBTD@{ shape: lean-r, label: "711.36b Oxygen" }
AceticAcidBTD@{ shape: lean-r, label: "72b Acetic Acid" }
BTDProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/Polyimide_img/chemical_skip_benzophenone_3344_tetracarboxylic_dianhydridenediol_skip.png", label: "Chem Plant", pos: "t", w: 200, h: 200, constraint: "on" }
BTDCarbonDioxide@{ shape: lean-l, label: "18b Carbon Dioxide" }
BTDWater@{ shape: lean-l, label: "296.64b Water" }
BTDHydrogen@{ shape: lean-l, label: "216b Hydrogen" }
ChlorineR@{ img: "https://emi.expandium.net/packs/StarTechnology/eta3-hf2/recipes/gtceu/electrolyzer_decomposition_electrolyzing_hydrogen_chloride.png", label: "Electrolyser", pos: "t", w: 200, h: 200, constraint: "on" }
RHydrogen@{ shape: lean-l, label: "216b Hydrogen" }
TolueneBTD & BenzeneBTD & OxygenBTD & AceticAcidBTD --> BTDProcess
ChlorineR --> RHydrogen
BTDProcess --216b Hydrogen Chloride --> ChlorineR
ChlorineR --216b Chlorine--> BTDProcess
BTDProcess --> BTDCarbonDioxide
BTDProcess --> BTDWater
BTDProcess --> BTDHydrogen
end
class BenzophenoneTetracarboxylicDianhydride invisible
subgraph Polyimide [" "]
direction TB
NitricAcidPA@{ shape: lean-r, label: "36b Nitric Acid" }
PAProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/Polyimide_img/large_chemical_reactor_polyamic_acid.png", label: "LCR", pos: "t", w: 200, h: 200, constraint: "on" }
PAHydrogen@{ shape: lean-l, label: "72b Hydrogen" }
AmmoniaPolyimide@{ shape: lean-r, label: "54b Ammonia" }
PolyimideProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/Polyimide_img/large_chemical_reactor_polyimide.png", label: "LCR", pos: "t", w: 200, h: 200, constraint: "on" }
PolyimideWater@{ shape: lean-l, label: "189b Water" }
PolyimideNitrousOxide@{ shape: lean-l, label: "27b Nitrous Oxide" }
PI@{ shape: lean-l, label: "108b Polyimide" }
NitricAcidPA --> PAProcess
PAProcess --> PAHydrogen
PAProcess --108b Polyamic Acid--> PolyimideProcess
AmmoniaPolyimide --> PolyimideProcess
PolyimideProcess --> PolyimideWater
PolyimideProcess --> PolyimideNitrousOxide
PolyimideProcess --> PI
end
class Polyimide invisible
subgraph MetaPhenylenediamine [" "]
direction TB
NitricAcidNM@{ shape: lean-r, label: "18b Nitric Acid" }
SulfuricAcidNM@{ shape: lean-r, label: "12b Sulfuric Acid" }
NMProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/Polyimide_img/mixer_nitration_mixture.png", label: "Mixer", pos: "t", w: 200, h: 200, constraint: "on" }
BenzeneNBZ@{ shape: lean-r, label: "45b Benzene" }
DistilledWaterNBZ@{ shape: lean-r, label: "18b Distilled Water" }
NBZProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/Polyimide_img/large_chemical_reactor_nitrobenzene.png", label: "LCR", pos: "t", w: 200, h: 200, constraint: "on" }
SRProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/Polyimide_img/distillery_distill_dilute_sulfuric_to_sulfuric_acid.png", label: "Distillery", pos: "t", w: 200, h: 200, constraint: "on" }
HydrogenMP@{ shape: lean-r, label: "624b Hydrogen" }
AmmoniaMP@{ shape: lean-r, label: "24b Ammonia" }
MPProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/Polyimide_img/large_chemical_reactor_m_phelyenediamine.png", label: "LCR (Nickel Catalyst)", pos: "t", w: 200, h: 200, constraint: "on" }
MPWater@{ shape: lean-l, label: "144b Water" }
NitricAcidNM & SulfuricAcidNM --> NMProcess
BenzeneNBZ & DistilledWaterNBZ --> NBZProcess
NMProcess --18b Nitration Mixture--> NBZProcess
NBZProcess --9b Diluted Sulfuric Acid--> SRProcess
SRProcess --6b Sulfuric Acid--> NMProcess
NBZProcess --72b Nitrobenzene--> MPProcess
HydrogenMP & AmmoniaMP --> MPProcess
MPProcess --> MPWater
end
class MetaPhenylenediamine invisible
NM2PProcess --576x N-Methyl-2-Pyrrolidone Dust--> PAProcess
BTDProcess --"2160x <br /> 3,3,4,4-Benzophenone <br /> Tetracarboxylic Dianhydride Dust"--> PAProcess
MPProcess --72b <br /> Meta-Phenylenediamine--> PAProcess
Hold "Alt" / "Option" to enable pan & zoom
About as long as the other plastics you would be making at this tier. The only real difference is the use of Chem Plants. You could forgo them, but it would make the recipe tree much longer.
- 54b Nitric Acid
- 12b Sulfuric Acid (18b without recycling)
- 162.36b Benzene
- 18b Distilled Water
- 336b Hydrogen (840 without recycling)
- 114b Ammonia
- 855.36b Oxygen
- 72b Toluene
- 72b Acetic Acid
- 216b Chlorine (Can be recycled)
- 773.64b Water
- 27b Nitrous Oxide
- 108b Polyimide
- 18b Carbon Dioxide
- 216b Hydrogen Chloride (Used for recycling)
- 504b Hydrogen (Used for recycling)
Keep in mind the inputs and outputs for this line have been inflated for balancing purposes.

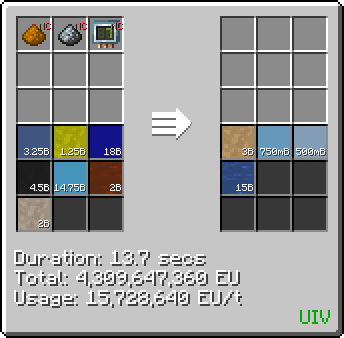

Atomic Synthesis Plant¶
The Chem Plant is unable to reduce this line, and you will need to wait until
- Palladium on Carbon Dust (Catalyst, Non-consumed)
- Nickel Dust (Catalyst, Non-consumed)
- Ammonia
- Nitric Acid
- Hydrogen
- Benzene
- Oxygen
- Toluene
- Acetic Acid
- Polyimide
- Nitrous Oxide
- Carbon Dioxide
- Water
Uses of PI¶
As mentioned before, PI is used as a foil to insulate cables in addition to PVC and PPS. You will first need it to make Europium Cable, used in
PI is the last plastic you need to insulate cables, for the rest of the game (for now, that is).
