Polybenzimidazole (PBI)
Guide by: ME Item Storage Cell
PBI is the
How to make PBI
LCR
flowchart TD
%%{init: { 'theme': 'neutral', 'themeVariables': { 'edgeLabelBackground': 'transparent', 'secondaryColor': 'transparent', 'tertiaryColor': 'transparent', 'labelBkgBackground' : 'transparent' }}}%%
classDef invisible fill:none,stroke:none,color:none,stroke-width:0px
subgraph SubDiaminobenzidine [" "]
direction TD
NitricNM@{ shape: lean-r, label: "90b Nitric Acid" }
SulfuricNM@{ shape: lean-r, label: "45b Sulfuric Acid" }

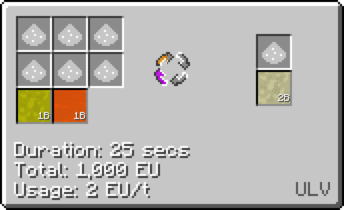

NMProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/PBI_img/mixer_nitration_mixture.png", label: "Mixer", pos: "t", w: 200, h: 200, constraint: "on" }
ChlorineCB@{ shape: lean-r, label: "180b Chlorine" }
BenzeneCB@{ shape: lean-r, label: "90b Benzene" }
CBProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/PBI_img/large_chemical_reactor_chlorobenzene.png", label: "LCR", pos: "t", w: 200, h: 200, constraint: "on" }
CBHydrochloric@{ shape: lean-l, label: "90b Hydrochloric Acid" }
NCBProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/PBI_img/large_chemical_reactor_nitrochlorobenzene.png", label: "LCR", pos: "t", w: 200, h: 200, constraint: "on" }
CopperDCB@{ shape: lean-r, label: "5x Copper Dust" }
HydrogenDCB@{ shape: lean-r, label: "90b Hydrogen" }

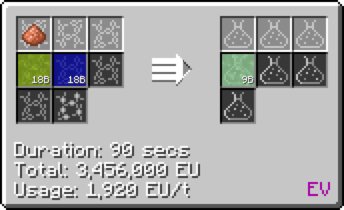

DCBProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/PBI_img/large_chemical_reactor_dichlorobenzidine_9.png", label: "LCR", pos: "t", w: 200, h: 200, constraint: "on" }
AmmoniaDAB@{ shape: lean-r, label: "90b Ammonia"}
DABProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/PBI_img/large_chemical_reactor_diaminobenzidine.png", label: "LCR (Zinc NC)", pos: "t", w: 200, h: 200, constraint: "on" }
DABHydrochloric@{ shape: lean-l, label: "90b Hydrochloric Acid"}
DSProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/PBI_img/distillery_distill_dilute_sulfuric_to_sulfuric_acid_2.png", label: "Distillery", pos: "t", w: 200, h: 200, constraint: "on" }
NitricNM --> NMProcess
SulfuricNM --> NMProcess
ChlorineCB --> CBProcess
BenzeneCB --> CBProcess
CBProcess --> CBHydrochloric
NMProcess --180b Nitration Mixture---> NCBProcess
CBProcess --90b Chlorobenzene---> NCBProcess
NMProcess ~~~ CBProcess
NCBProcess --90b Diluted Sulfuric Acid--> DSProcess
DSProcess ~~~ NCBProcess
CopperDCB --> DCBProcess
HydrogenDCB --> DCBProcess
NCBProcess --90b Nitrochlorobenzene--> DCBProcess
AmmoniaDAB --> DABProcess
DCBProcess --45b Dichlorobenzidine--> DABProcess
DABProcess --> DABHydrochloric
DABProcess ~~~ DABHydrochloric
DSProcess --45b Sulfuric Acid--> NMProcess
end
class SubDiaminobenzidine invisible
subgraph SubDiphenylIsophthalate [" "]
direction TD
NaphthalenePhthalic@{ shape: lean-r, label: "38b Naphthalene"}
PotassiumPhthalic@{ shape: lean-r, label: "2x Potassium Dust"}
PhthalicProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/PBI_img/large_chemical_reactor_phthalic_acid_from_naphthalene_9.png", label: "LCR", pos: "t", w: 200, h: 200, constraint: "on" }
OxygenSulfuric@{ shape: lean-r, label: "72b Oxygen"}
SulfuricProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/PBI_img/large_chemical_reactor_sulfuric_acid_from_sulfide.png", label: "LCR", pos: "t", w: 200, h: 200, constraint: "on" }
PhenolDI@{ shape: lean-r, label: "90b Phenol"}
SulfuricDI@{ shape: lean-r, label: "22.5b Sulfuric Acid"}
DIProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/PBI_img/large_chemical_reactor_diphenyl_isophtalate.png", label: "LCR", pos: "t", w: 200, h: 200, constraint: "on" }
DSAProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/PBI_img/distillery_distill_dilute_sulfuric_to_sulfuric_acid_2.png", label: "LCR", pos: "t", w: 200, h: 200, constraint: "on" }
NaphthalenePhthalic & PotassiumPhthalic --> PhthalicProcess
PhthalicProcess --18b Hydrogen Sulfide--> SulfuricProcess
PhthalicProcess --45b Phthalic Acid--> DIProcess
OxygenSulfuric --> SulfuricProcess
OxygenSulfuric ~~~ SulfuricProcess
SulfuricProcess --18b Sulfuric Acid--> PhthalicProcess
PhenolDI & SulfuricDI --> DIProcess
DIProcess --45b Dilute Sulfuric Acid--> DSAProcess
DSAProcess --22.5b Sulfuric Acid--> DIProcess
end
class SubDiphenylIsophthalate invisible
subgraph SubPolybenzimidazole [" "]
direction TD
PBIProcess@{ img: "https://start-dev-team.github.io/StarT-Wiki/Chemical-Lines/Plastics/PBI_img/large_chemical_reactor_polybenzimidazole.png", label: "LCR", pos: "t", w: 200, h: 200, constraint: "on" }
PBI@{ shape: lean-l, label: "45.45b Polybenzimidazole"}
PBIPhenol@{ shape: lean-l, label: "45b Phenol"}
PBIProcess --> PBI & PBIPhenol
end
class SubPolybenzimidazole invisible
DIProcess --45b Diphenyl Isophtalate--> PBIProcess
DABProcess --45b Diaminobenzidine--> PBIProcess
DSAProcess ~~~ CopperDCB
Hold "Alt" / "Option" to enable pan & zoom
As evident by the flowchart, PBI is one of the more complex plastics to make. Don't worry, it only gets worse from here on.
Do note however, the I/O in this flowchart has been balanced. You can make PBI with far less materials, you would just have leftover ingredients.
- 38b Naphthalene
- 2x Potassium Dust
- 90b Phenol (45 if you recycle)
- 67.5b Sulfuric Acid (135 without distillation, 153 if you store Hydrogen Sulfide for SPT boosting)
- 72b Oxygen (if you recycle Hydrogen Sulfide)
- 90b Nitric Acid
- 180b Chlorine
- 90b Benzene
- 90b Hydrogen
- 5x Copper Dust
- 90b Ammonia
- 45.45b PBI
- 45b Phenol (without recycling)
- 180b Hydrochloric Acid
- 135b Diluted Sulfuric Acid (You should really distill this)
Chem Plant
Thankfully, with the help of the Chem Plant, you can skip that long chemical line, and condense it into 1 recipe.

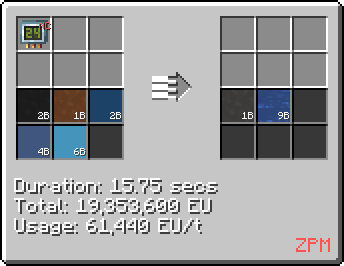

Chem Plant
Thankfully, with the help of the Chem Plant, you can skip that long chemical line, and condense it into 1 recipe. This recipe also skips on Phthalic Acid, thus not needing Naphthalene any longer.
Inputs are Benzene, Phenol, Carbon Monoxide, Ammonia, and Oxygen. You can just void Water.
Uses of PBI

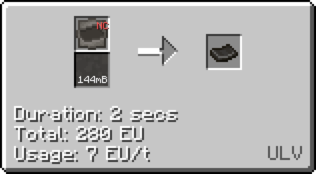

You will need it as a sheet to make both
Along with being used for other

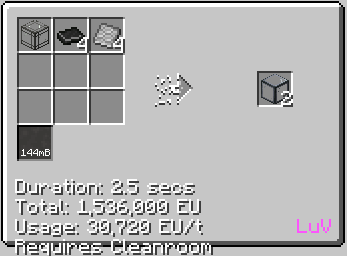

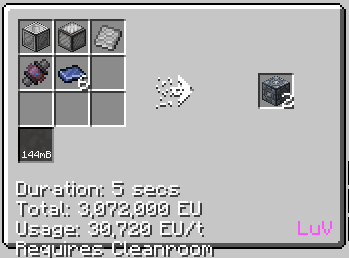

Requires Cleanroom, text got cut off in JEI
Requires Cleanroom, text got cut off in JEI
